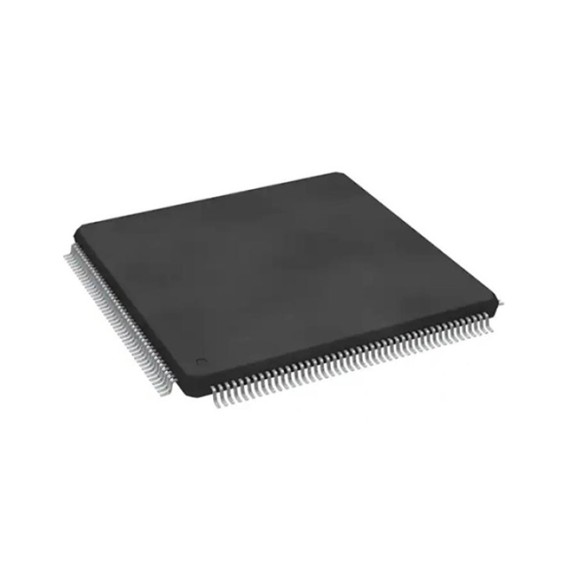

ARM Microcontroller - MCU DSP FPU ARM CortexM4 1Mb Flash 180MHz

  • Manufacturer: STMicroelectronics
  • Nocochips NO:
  • Package: STM32F429IGT6
  • Datasheet: -
  • Stock: 999
  • Description: ARM Microcontroller - MCU DSP FPU ARM CortexM4 1Mb Flash 180MHz(Kg)



The high-performance Arm  Cortex -M4 32-bit RISC core of the STM32F429IGT6 chip operates at a frequency of up to 180 MHz. A floating-point unit (FPU) single precision is a characteristic of the Cortex-M4 core that supports all Arm? single-precision data-processing instructions and data formats. Additionally, it incorporates a memory protection unit (MPU) that improves program security together with the whole range of DSP instructions.

The STM32F429IGT6 device includes a wide array of enhanced I/Os and peripherals connected to two APB buses, two AHB buses, and a 32-bit multi-AHB bus matrix, as well as high-speed embedded memories (Flash memory up to 2 Mbyte, up to 256 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and these features.



– Up to 2 MB of Flash memory organized into two banks allowing read-while-write

– Up to 256+4 KB of SRAM including 64-KB of CCM (core coupled memory) data RAM

– Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, Compact Flash/NOR/NAND memories

Core: Arm? 32-bit Cortex?-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator?) allowing 0-wait state execution from Flash memory, frequency up to 180 MHz, MPU, 225 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions

8- to 14-bit parallel camera interface up to 54 Mbytes/s

True random number generator

CRC calculation unit

RTC: subsecond accuracy, hardware calendar

96-bit unique ID


Printers, and scanners

Alarm systems, video intercom, and HVAC

Home audio appliances

Motor drive and application control

Medical equipment

Industrial applications: PLC, inverters, circuit breakers
