• Manufacturer:
  • Nocochips NO:
  • Package: STM32L476ZGT6
  • Datasheet: -
  • Stock: 9999
  • Description: (Kg)

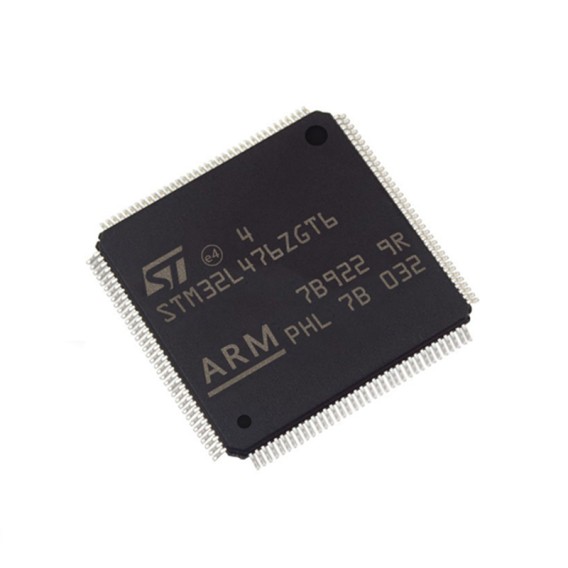

The STM32L476ZGT6 is an ultra-low-power STM32 L4 series 32-bit Microcontroller based on the high-performance ARM Cortex-M4 RISC core operating at a frequency of up to 80MHz. The Cortex-M4 core features a floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The device embed high-speed memories (Flash memory up to 1024KB, up to 128kB of SRAM), a flexible external memory controller (FSMC) for static memories, a quad SPI flash memories interface and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix. The device embed several protection mechanisms for embedded flash memory and SRAM - readout protection, write protection, proprietary code readout protection and firewall.

Main Features

Model Number: STM32L476ZGT6

Brand Name: ST

Description: integrated circuit MCU

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Voltage - Supply (Max): 1.71V ~ 3.6V

Applications: ndustrial Standard

Size/Dimension: 144-LQFP (20x20)

Writable Memory: 1MB (1M x 8)

Core Processor: ARM Cortex -M4

Core Size: 32-Bit Single-Core

Speed: 80MHz

Peripherals: Brown-out Detect/Reset, DMA, LCD, PWM, WDT

Number of I/O: 114

RAM Size: 128K x 8

Data Converters: A/D 24x12b; D/A 2x12b
